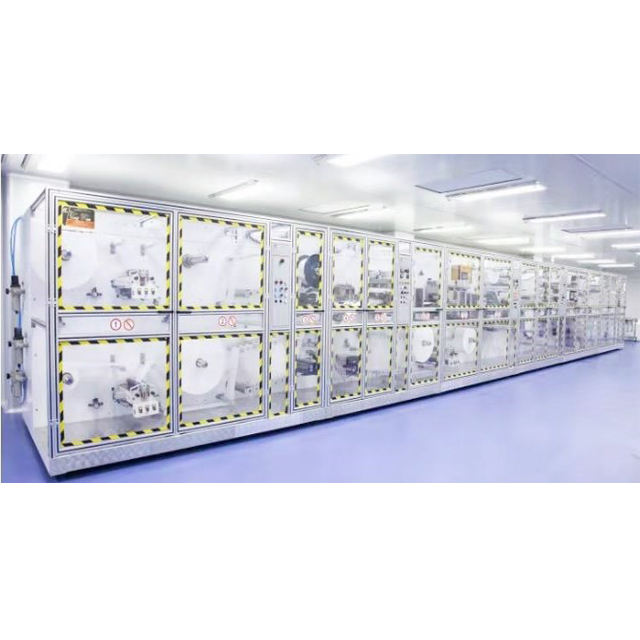

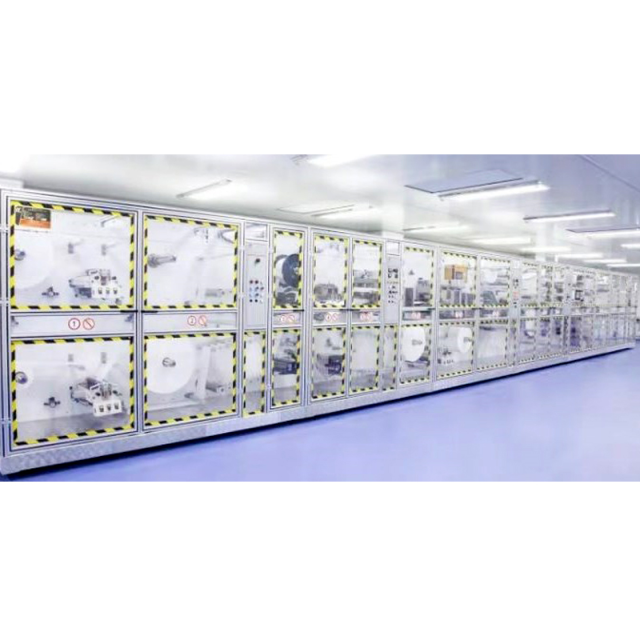

Full Servo Sanitary Napkin machine

全伺服护翼生产线
Full Servo Sanitary Napkin Machine

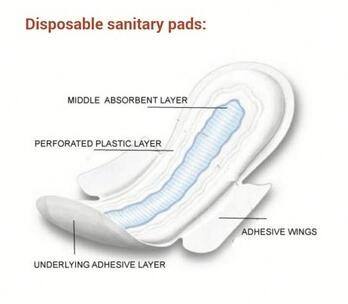

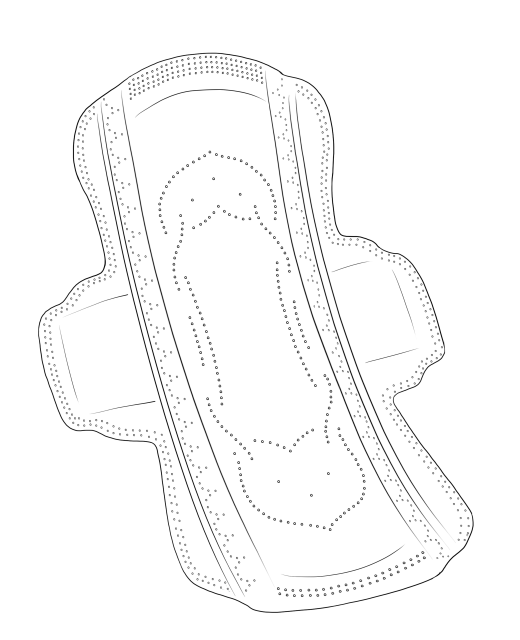

产品结构Product Stucture
1.快易包卫生巾Fasteasy packing sanitary napkin

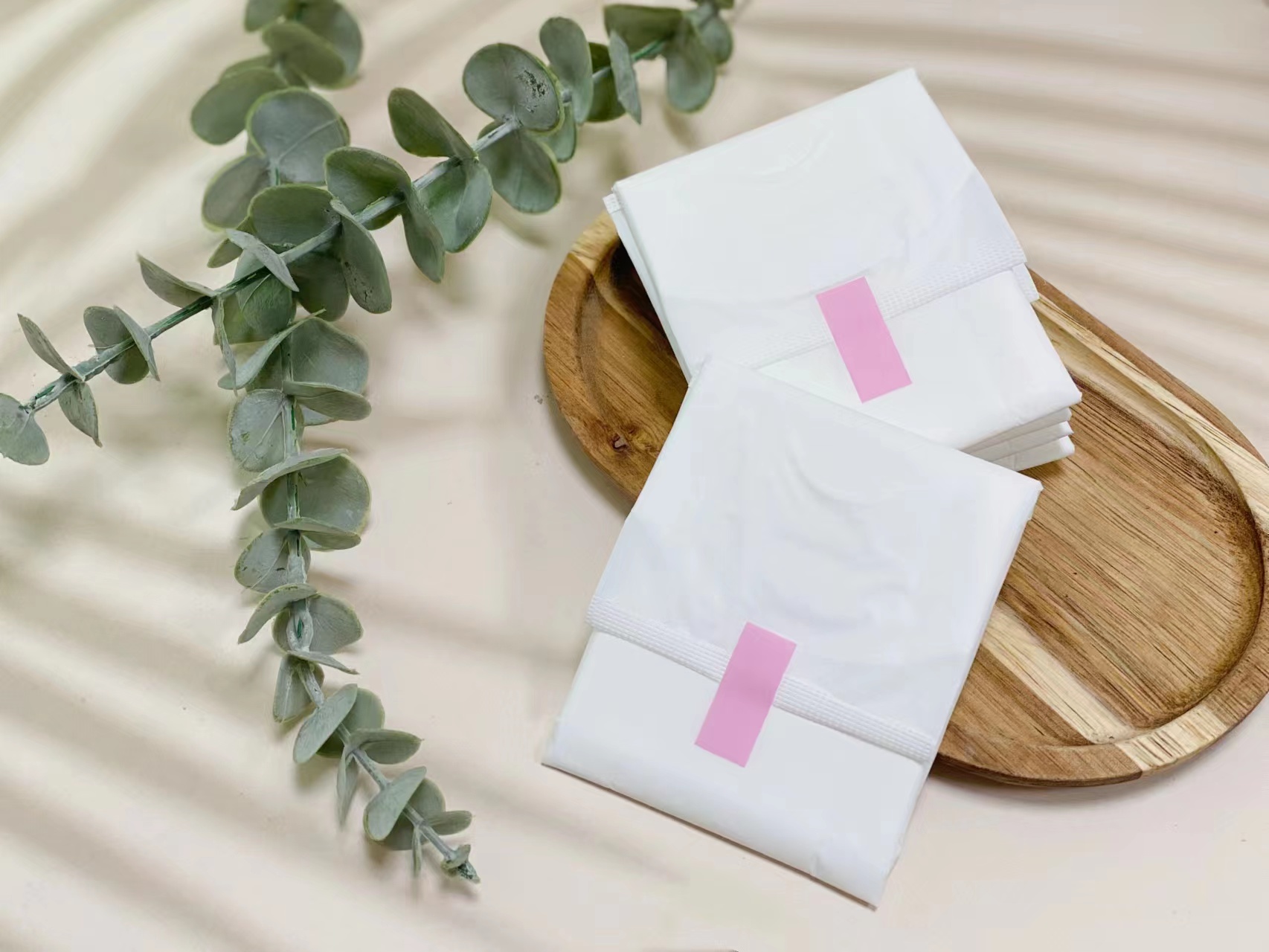

2.直条包卫生巾Straight packing sanitary napkin

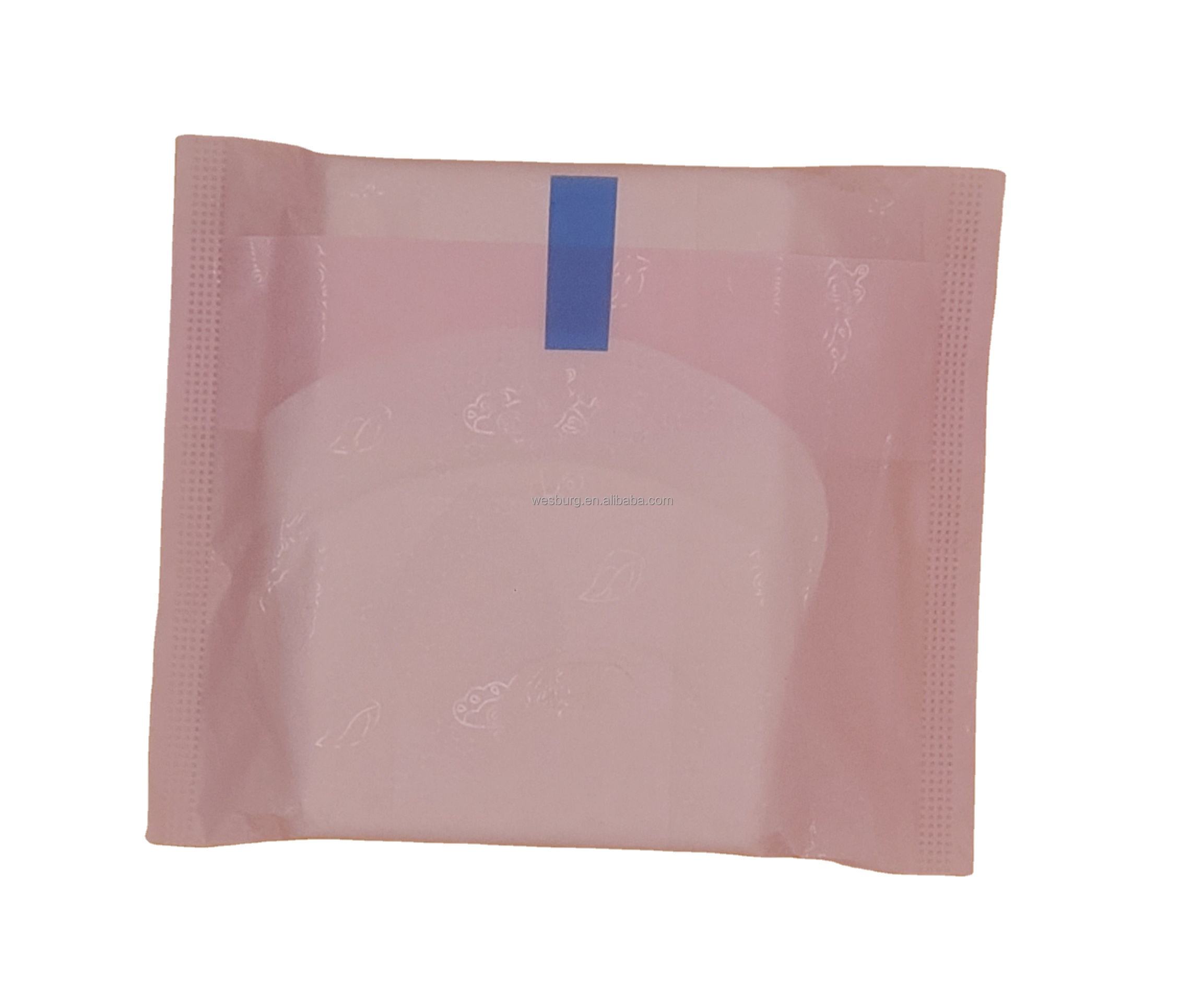

3.独立包卫生巾Individual packing sanitarynapkin
主要技术参数Main Technical parameters
1.电源；三相，380V,50HzSupply,3 phase, 380V,50Hz
2.总功率：180-330KW(不含胶机及空压机)
Power:180-330KW(Excluding hotmelt applicatorand Compressor)
3.生产速度：600-1200片/分钟Production speed: 400-600pcs/min
4.合格率：≥97%Qualification:≥97%
5.外形尺寸(米):32×8.5×5 宽x高)(仅参考)Outside dimension (m):32x8.5x5(LXWXH)(forreference)
股票代码Stock Code:300222
主要性能特点Main Functions and Features

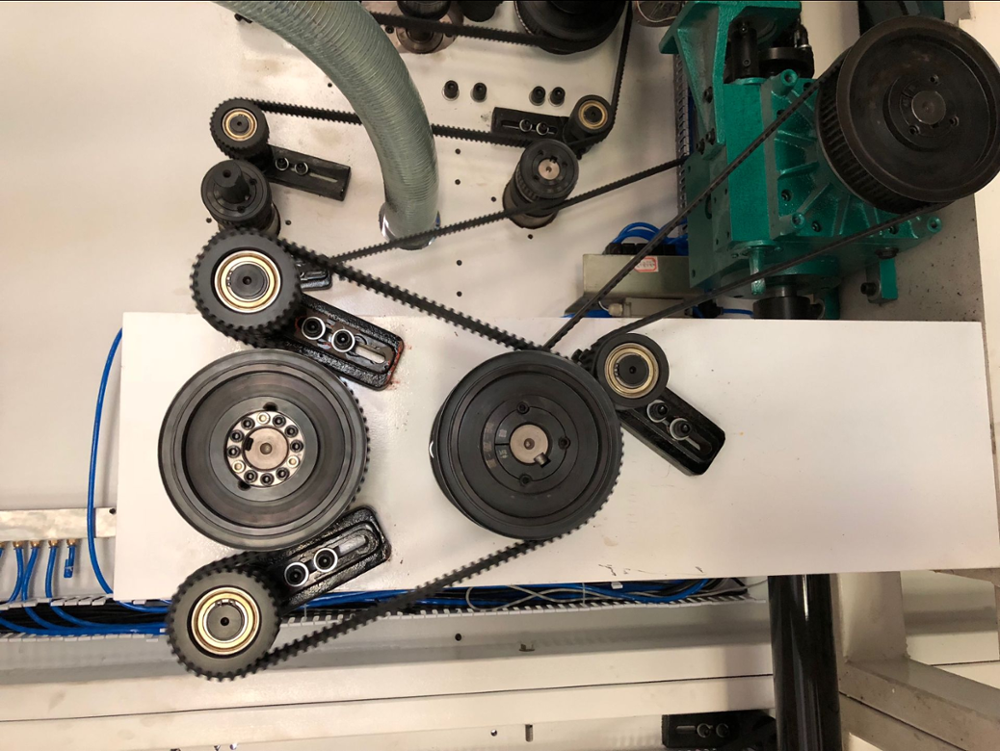

一、机械部分Mechanical part
1.木桨高分子混合产品和复合无尘纸产品均可兼容PulpSAPmixingproductand laminating coreproductarecompatible
2.高密度超薄吸收体成型系统、吸收好
High-densityuitra-thinfluffcoreformingsystem,good absorbablity
3.芯体在线穿刺、面层印刷定位
Corepunchingon ineandtopsheet printingrulepositionfunction
4.自动纠偏装置With web guiding system
5.主机具备理片功能直接与包装机对接(选配)
Machinewith countfunction anddirectly connect with packingmachine(option)
6.包装机(选配)Packingmachine(option)
7.集尘系统(选配)
Dustcollection fiter system(option)
8.直条包、单面贴剥离口制作工艺(选配)Straightpacking with ixtapeseparatingfunction(option)
二、电气部分Electric part

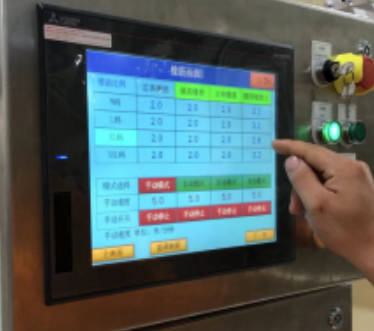

1.全伺服驱动，PLC控制系统Full servo motor drive andPLCcontrol
2.一键规格切换方便、快捷，减少换型产生浪费Onebuttonforsize change,quick and iesswaste
3.高精度张力控制系统，主动开卷自动换接料
High predsiontension controlsystem,activeun windingand auto splicingsystem
4.i-MAS智能设备管理分析系统
-MASintelligentequipmentmangement and analysis system
5.换接料料尾控制在3米、减少原材料损耗
“Materalauto -splicingendjointimitat 3m,and decrease material wastage
6.全自动材料检测，断料，缺失报警系统Materialautomatic inspect,broken andlostalarmsystem
7.材料图案定位施加
Materialpictureruledpositionapplication
8.视觉检测系统(选配)Visioninspection system(option)

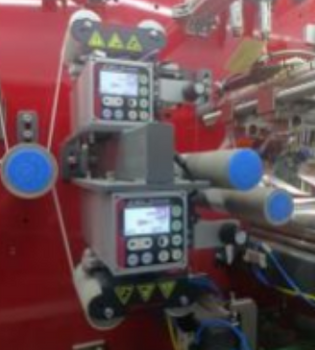

9.橡筋BTSR张力控制系统、单根张力可调(选配))EiasticBTSRtension control system,single tension adjust(option)
