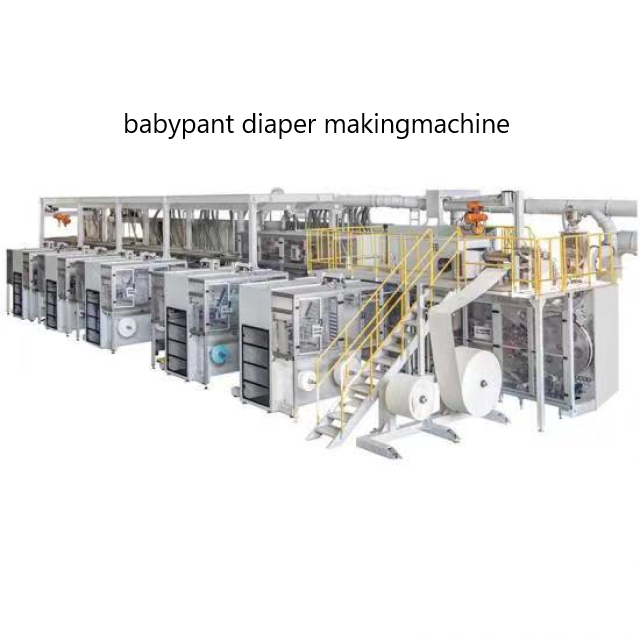

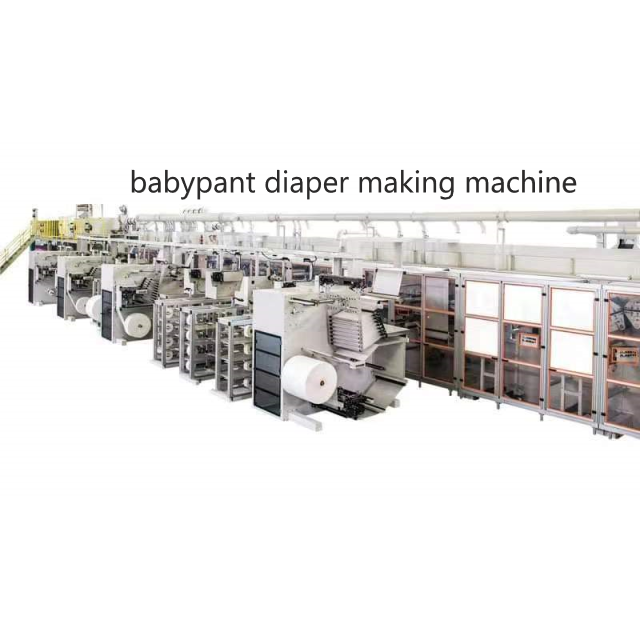

Automatic Baby Pant Diaper Making Machine Machinery
1. Design speed:500 pcs/min
2. Reliable speed:400 pcs/minute(According to Middle size )

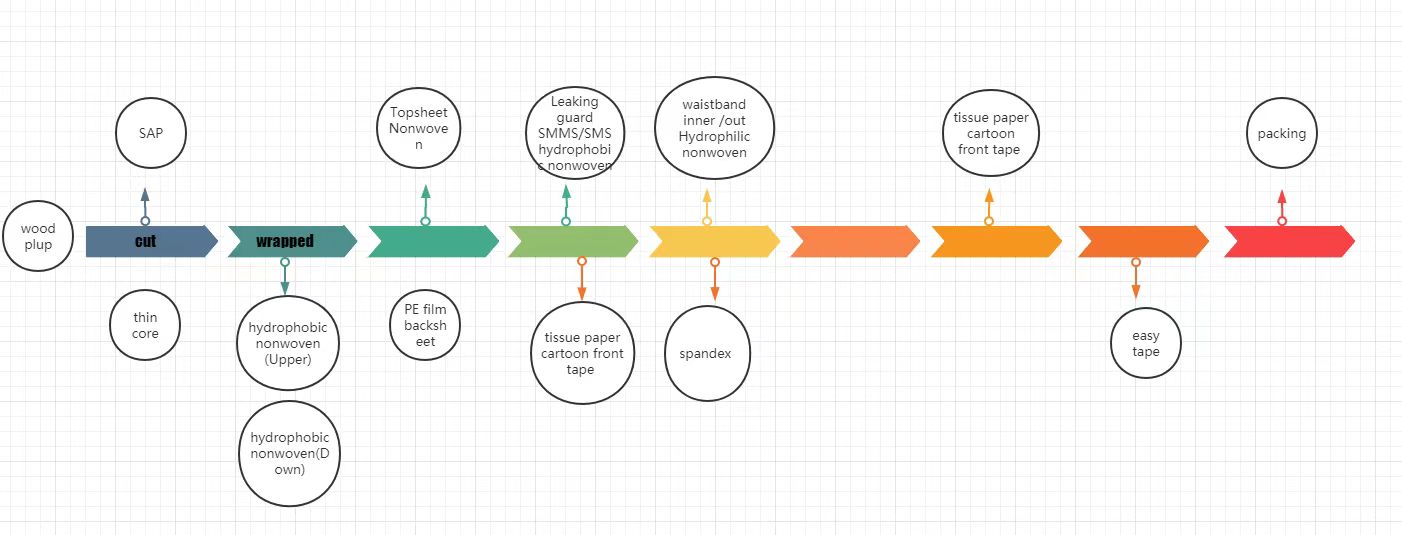

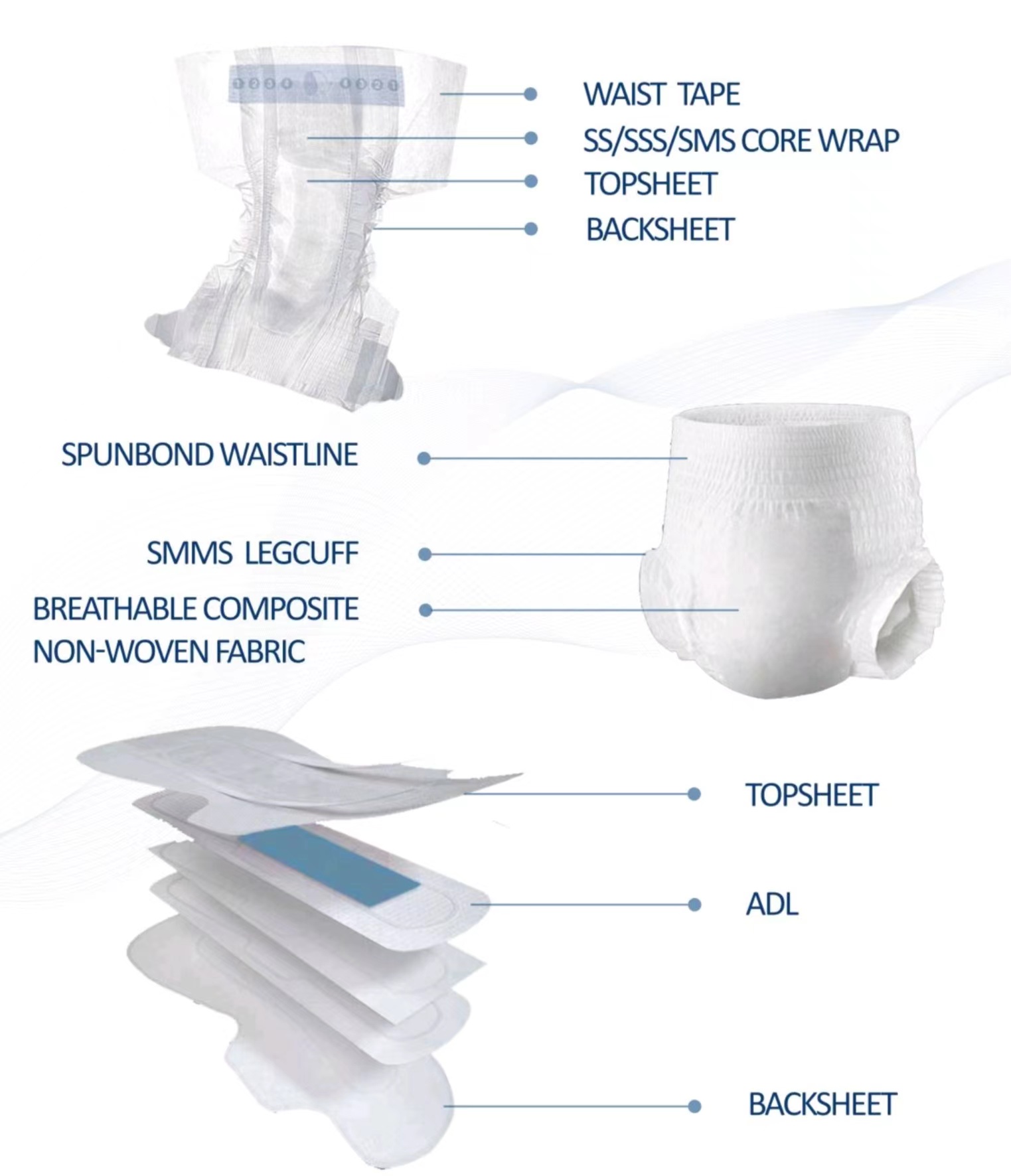

3. Product structure:Leak cuff,ACQ,Up & bottom tissue, Fluff(SAP mixing),Side tape,Frontal tape,Waistband
4. Product size:XL,L,M,S;
5. Power source:380V 50HZ
6. Power consumption:About 180KW
7. Rejected products rate:≤2%(Excluding defects from glue and splice)
8. Machine heading:Facing machine, from left to right
9. Machine weight:About 45 tons
10. Machine color:According to customer’s request.
11. Machine overall size (L ×W ×H,exclude Stacker, about):21.5m ×6.5m ×3m
Name | Brand |
PLC | Mitsubishi |
Touch panle | |
Frequency conversion decoiling cutter is frequency drive by single shaft adsorption transmission is servo drive | Mitsubishi |
transducer | Mitsubishi |
Web guide | LIKE |
Photoelectric switch | SICK |
Temperature controller | Yamatake |
Low-voltage electricity | Schneider |
Solid relay | FOTEK |
Cylinder / magnetic valve / air gauge | AIRTAC |
Bearing | The main parts use NSK,others use HRB |
Timing belt | Gates |
Flat belt | HABASIT |
Arc cutter | China |
1. Training:
Buyer can send his technicians to seller plant for long term training during machines making. All the technicians’ expenses (including return air-tickets, boarding and lodging, and 150-200 dollars as per day salary, etc) are paid by buyer during installing & debugging at buyer plant, seller technicians are responsible for short time training for buyer operators.
2. Seven days in advanced before every preparation works are ready, buyer should notice seller.
Seller should dispatch 2 – 3 technicians to buyer plant to install machines.
3. Guarantee: 12 months after final acceptance at buyer plant.
4. Easy worn parts (such as belts, bearings, etc) are not covered against guarantee.
5. Damaged parts caused by unforeseen accidents or improper operation are not covered against
Guarantee
6: Life-long service
