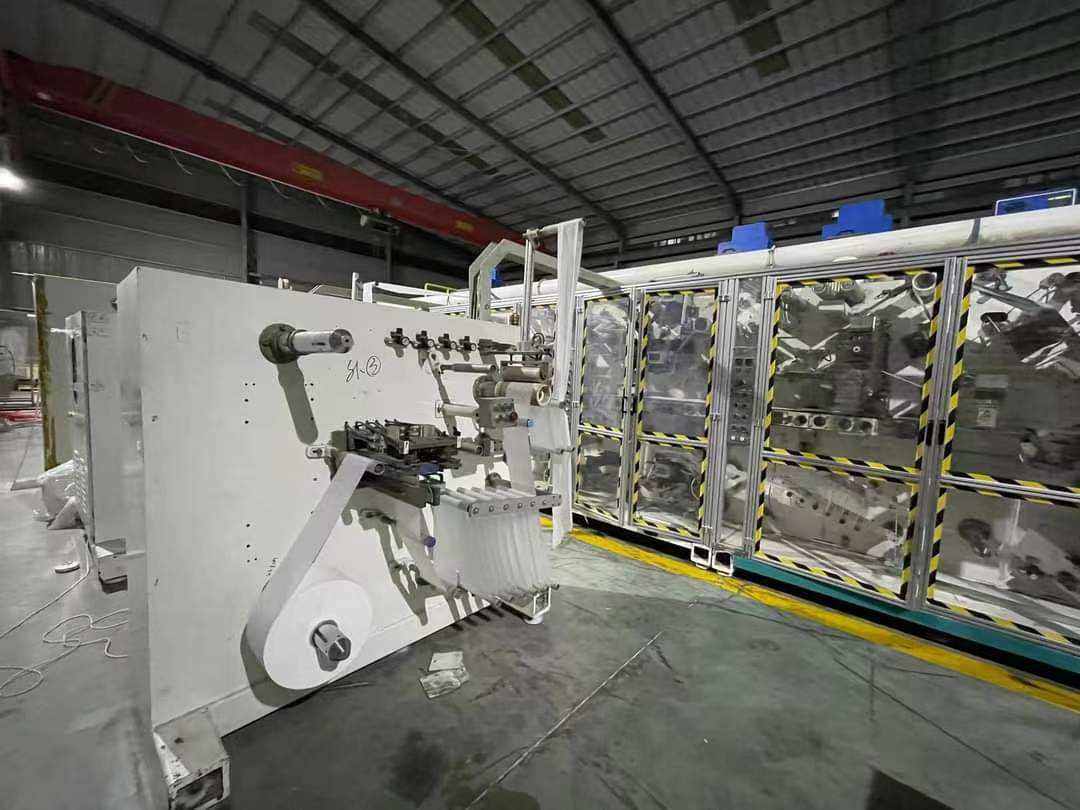

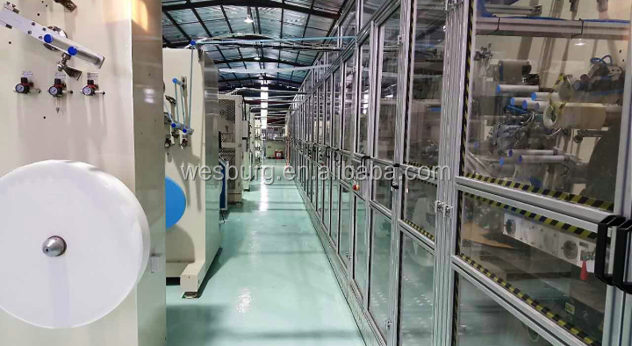

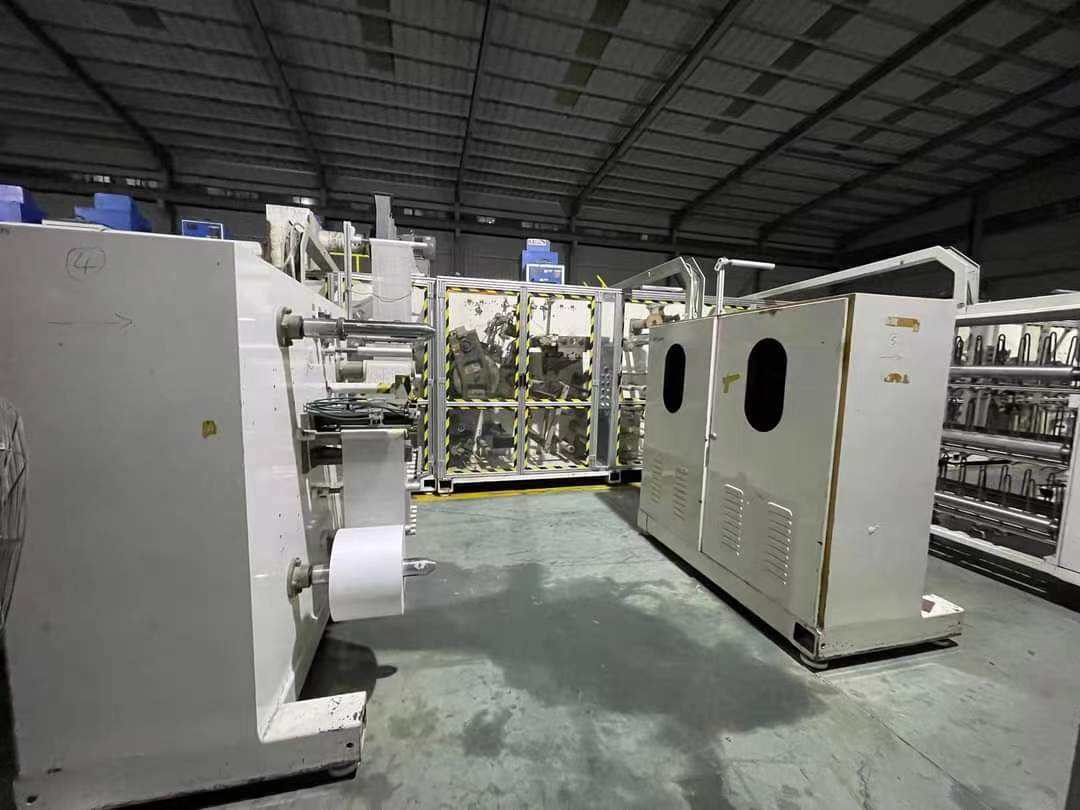

High quality baby diaper production line used baby diaper machine
1- The machine can produce four sizes (S.M.L.XL) baby products by changing cutting tools and gear box
2- High speed teeth-like crusher can take treated and untread pulp.
3- Full servo control machine is totally driven by servo motors without shafts transmission.
4- Mitsubishi/Siemens PLC centralized control
5- Automatic splicing material without stopping the machine, so the working speed is guaranteed.
6- Automatically detect and reject defective products and trim remove.
7- Automatically stop the machine when material is broken or used out.
8- Human machine interface is controlled by touch screen.

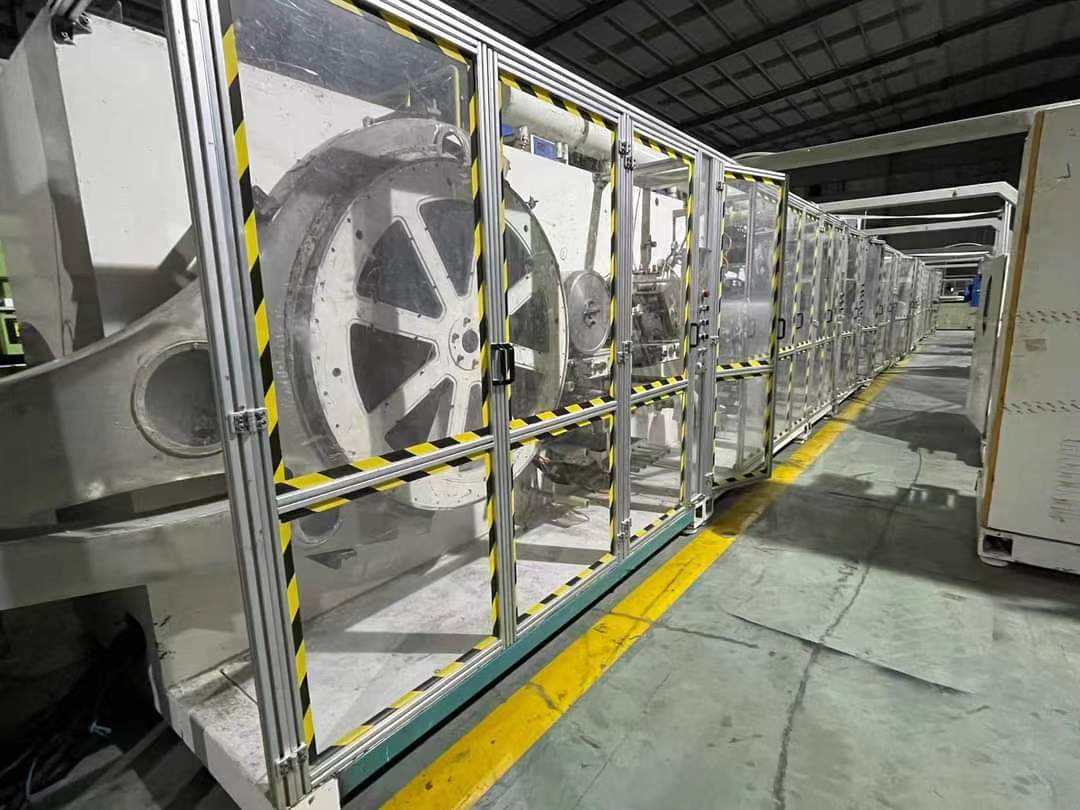

9- Safety protective door.
10- All electric components are famous international brand.
11- All cutter assembly & machine body are CNC processing
12- In the frontal and back side of the machine, there is emergency stop line which is able to stop the machine at any place in emergency.
Product name | Full servo super absorbency baby diaper machine |
Power supply | 380V 50HZ |
Installation capacity | 250KW |
Designed production speed | 550 pcs/min |
Stable production speed | 450-500 pcs/min |
Product dimension
| a). S(380-390)×280mm b). M(430-440)×320mm c). L(470-480)×320mm d). XL (510-520)×330mm (customized) |
Waster Percent | less than 2% (excluding caused by glue applicators failure) |
Machine size | 30m×9.0m×4.5m (L×W×H) |
Operation size (Minimal) | 40m×12m×5.0m (L×W×H) |
Weight | 80 Tons |
RAW MATERIAL SPECIFICATION (It will be changed according to the customer’s sample) | ||||
No. | Description | Width | Diameter | Basis weight (reference) |
1 | hydrophilic nonwoven (topsheet) | 140mm | Ø800 | 18-40g/m2 |
2 | hydrophobic nonwoven (legcuff) | 380mm | Ø800 | 13-15g/m2 |
3 | ADL (distribution layer) | 75-80mm | Ø800 | 35-50g/m2 |
4 | fluff pulp | 480mm | Ø1500 | untreated |
5 | SAP | In bag packing | In bag packing | powder |
6 | Tissue | 100mm (upper layer) 180mm( lower layer) | Ø800 | 15-18g/m2 |
7 | SPANDEX | In roll packing | Ø350 | 620D |
8 | rubber glue | In box packing | In box packing | solid |
9 | construction glue | In box packing | In box packing | solid |
10 | side tape (PE) | 62mm | Ø450 | 145g/m2 |
11 | velcro side tape | 62mm | Ø450 | 150g/m2 |
12 | frontal tape (PE) | 190-210mm | Ø500 | 20-25g/m2 |
13 | velcro frontal tape | 190-210mm | Ø500 | 50-60g/m2 |
14 | elastic waistband | 90-100mm | Ø500 | 50-60g/m2 |
15 | Lamination backsheet | 320mm | Ø800 | 28-35g/m2 |
16 | hydrophobic nonwoven (separate) | 320mm | Ø800 | 15-18g/m2 |
17 | PE film (separate) | 190-200mm | Ø800 | 15-20g/m2 |
1. The guarantee is one year. After the machine arrive the buyer’s factory, if the buyer requests, the seller must send the engineer to the buyer’s factory to install and test the machine, and offer training for the buyer’s engineer about 30 days. The buyer should pay the visa charges, round trip ticket, hotel, food, local traffic and salary USD80 /day each person for the seller’s engineer.
2. The electrical components, the loss by nature and artificial damage created by unprofessional technician, not in maintenance scope.
3. The seller will offer lifetime consultation service. If the machine has problem in the guarantee period or out of guarantee period, the seller should arrange the engineer to repair when urgent calls from the buyer as soon as possible. The buyer should pay the visa charges, round trip ticket, hotel, food, local traffic and salary USD80 /day each person for the seller’s engineer.
